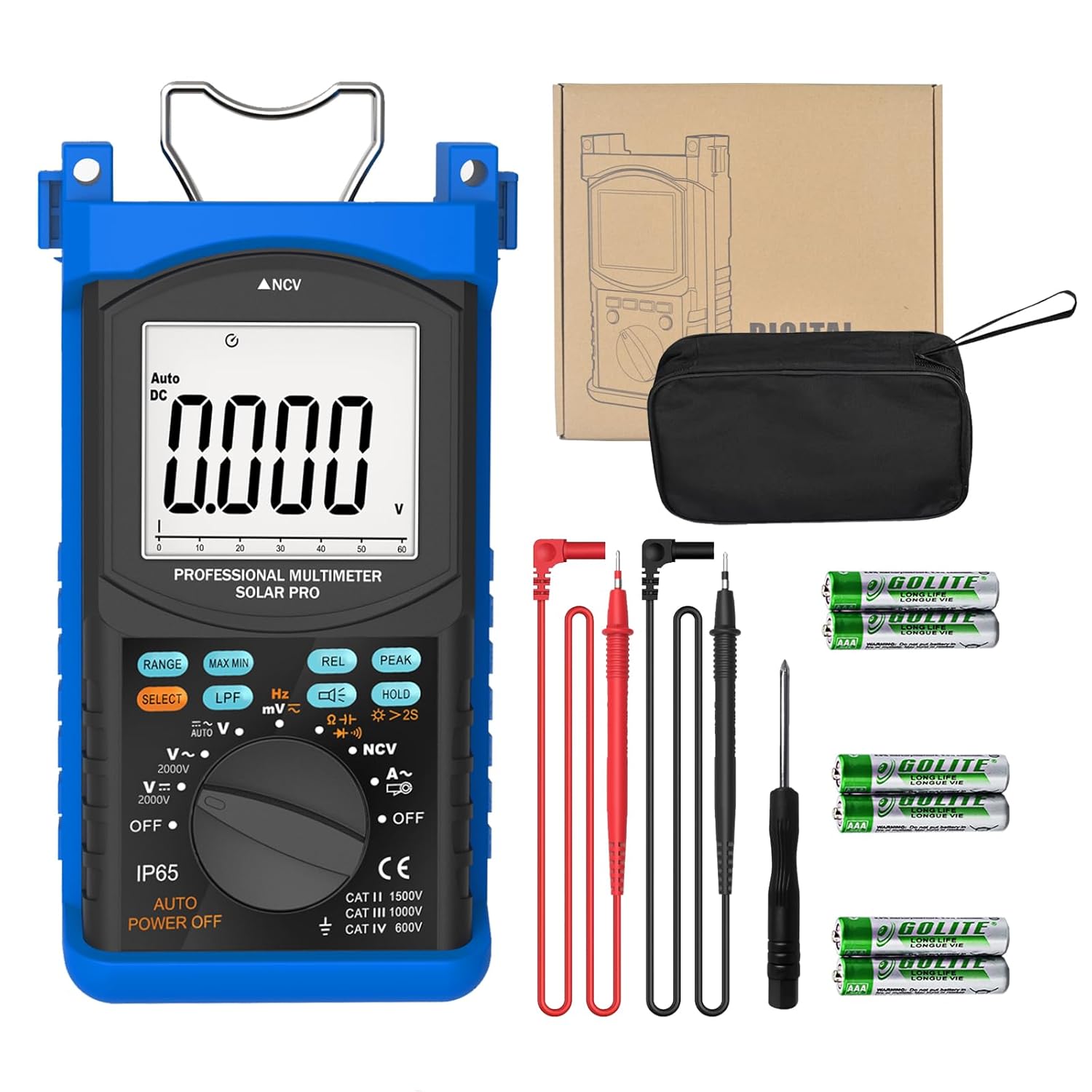

Digital Multimeter TRMS 6000 Counts, WapoRich Peak Voltage Tester Measure 2000V AC/DC, 3000A Current, Ohm Frequency Capacitance Continuity, with Peak Min/Max, Low Pass Filter, LOZ, Auto Range

Main Functions: TRMS, Auto range, NCV Detection, Data Hold, MAX/MIN/Relative value measurement, P-MAX/P-MIN measurement, Dual Display Value, Low-Pass Filtering, Backlight, Automatic Shutdown, Flashlight, REL reset, Electrical symbols, Low Battery Prompt, Overrange Prompt, AC Low Impedance Prompt, 61-Segment Analog Bar.Range and AccuracyDC voltage: 600mV: ±(0.5%+3); 6V/60V/600V/2000V: ±(0.5%+2)AC voltage: 600mV/6V/60V/600V/2000V: 45Hz～500Hz: ±(0.8%+3), 500Hz～1kHz: ±(1.8%+3)LPF ACV 600V: 45Hz～200Hz: ±(2%+10), >200Hz(not defined)Automatic AC/DC voltage 600V: DC～500Hz: ±(2.0%+3), 500Hz～1kHz: ±(4.0%+3)Resistance: 600Ω: ±(1.0%+2); 6kΩ/60kΩ/600kΩ: ±(0.8%+2); 6MΩ: ±(1.0%+2); 60MΩ: ±(1.5%+3)The circuit disconnection resistance value is set to: >50Ω, and the buzzer does not sound.The circuit's good conduction resistance is set to: ≤50Ω, and there will be an audible alarm.Capacitance: 60nF: ±(3.0%+10); 600nF/6μF: ±(2.5%+5); 60μF/600μF: ±(5.0%+10); 6mF/60mF: ±(10.0%+20)Flexible current probe: 30A/300A/3000A: ±(0.8%+8)Frequency: 60.00Hz～1.000MHz: ±(0.1%+5)Accuracy temperature condition: 18℃ to 28℃, ambient temperature fluctuation range is stable within ±1℃. When the temperature is <18℃ or >28℃, additional temperature coefficient error: 0.1 × (specified accuracy)/℃Warm Reminder: Please read the instruction manual before use to understand the correct usage and ensure safe use.Packing List: As shown in the picture Digital Multimeter Voltage Tester, Test Leads, Storage Bag, Screwdriver, 9V battery, English Manual

• Professional Multimeter：Voltage tester not only provides NCV detection, MIN/MAX/relative value measurement, data hold, auto ranging, continuity tester and flashlight functions, but also supports peak MAX/MIN value measurement, low pass filtering, LOZ, automatic ACV/DCV measurement and other advanced functions, very suitable for photovoltaic testing and solving electrical problems.
• Dual Display Value：Simultaneously displays ① AC voltage and frequency // ② AC current and flex coil frequency // With a 6000-count backlit display that refreshes 3 times per second and a 61-segment analog bar that refreshes 30 times per second,
• High Voltage Multimeter：The RQ-6688T voltmeter can accurately measure DCV up to 2000V with an accuracy of ±5%, and ACV up to 2000V with an accuracy of ±0.8% ~ 1.5%. The Peak Voltage Adapter Multimeter can also measure capacitance up to 60 mF, resistance up to 60 MΩ, frequency up to 1,000 MHz, diode, continuity, and ACA up to 3,000 A (requires external current probe).
• Safe and Durable：Multimeter digital current meter with blue protective case and waterproof IP65 design, provides double insulation, non-slip grip and drop protection, conforms to CAT Ⅱ 2000V / CAT Ⅲ 1000V / CAT Ⅳ 600V and other safety standards, supporting the entire range Overload protection to ensure your safety during operation.
• Warranty and Support：Multimeter Multimeter is a professional tool for testing and repairing circuits, widely used in laboratories, factories, radio engineering, electromechanical photovoltaic stations, car repairs and private households. Plus, If you encounter any problems, please let us know. We are committed to providing you with timely support and assistance.
